Features

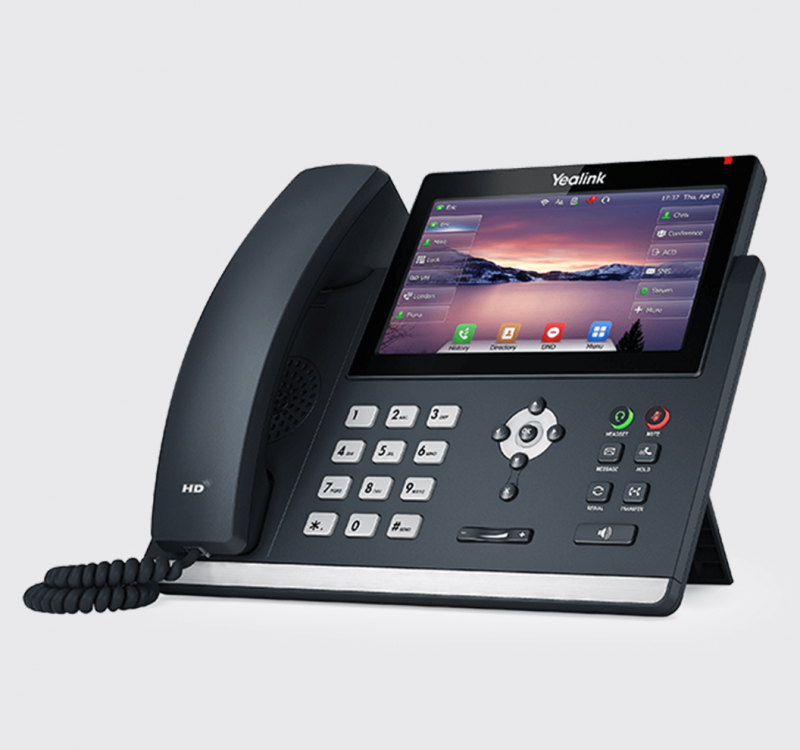

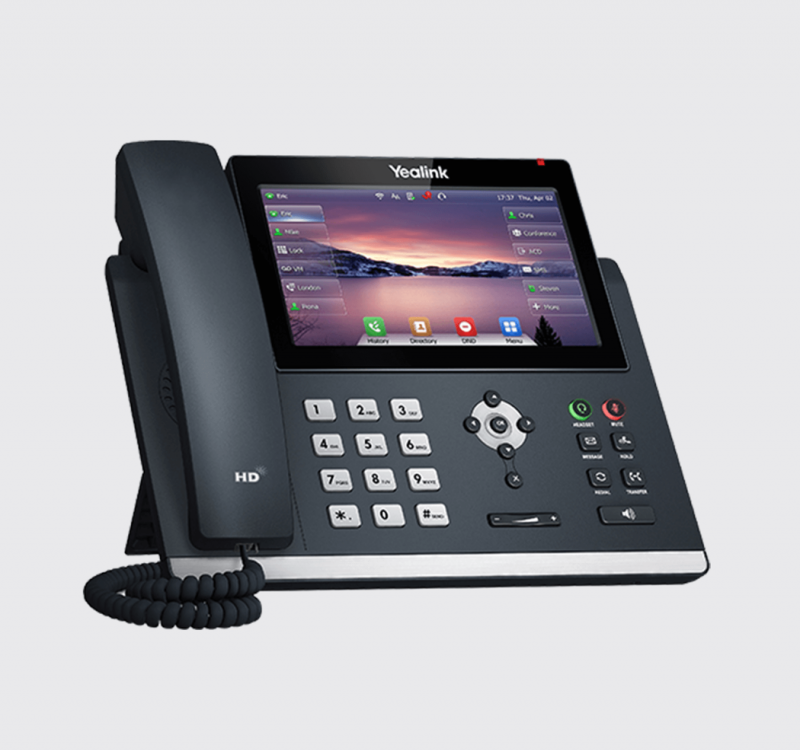

Yealink T48U (No PSU) Dual-port Gigabit Etherne, PoE support
• 7" 800 x 480-pixel color touch screen with backlight
• Opus codec support
• Dual USB ports
• Dual firmware images
• T4U Auto-P template unified
• T4U firmware unified
• Up to 16 SIP accounts
• Dual-port Gigabit Ethernet
• PoE support
• Paperless label design
• Headset, EHS support
• Wi-Fi via WF40/WF50
• Bluetooth via BT40/BT41
• USB recording
• Supports color-screen expansion modules
• Stand with two adjustable angles
• Wall mountable

Specifications

Audio Features
• HD voice: HD handset, HD speaker
• Hearing aid compatible (HAC) handset
• Acoustic Shield
• Smart Noise Filtering
• Codecs: AMR-WB (optional), AMR-NB (optional),Opus, G.722, G.711(A/µ), G.723.1, G.729AB, G.726,iLBC
• DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
• Full-duplex hands-free speakerphone with AE VAD, CNG, AEC, PLC, AJB, AGC

Phone Features
• 16 VoIP accounts
• Call hold, mute, DND
• One-touch speed dial, hotline
• Call forward, call waiting, call transfer
• Group listening
• Emergency call
• Redial, call return, auto answer
• 10-way conferencing
• Direct IP call without SIP proxy
• Ring tone selection/import/delete
• Set date time manually or automatically
• Dial plan, XML Browser, action URL/URI
RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)USB port (2.0 compliant) for:
- Bluetooth earphone through BT40/BT41
- Contact synchronization through BT40/BT41
- Simultaneous connection of one headset and one mobile •phone through BT40/BT41
- Wi-Fi through WF40/WF50
- USB call recording through USB flash drive
- USB headset
- Expansion Module EXP43
- Wireless Headset Adapter EHS40 USB/Bluetooth connectivity to Yealink CP900/CP700 speakerphone, USB connectivity to Yealink UH36
headset:
- Basic functions: Answer / end, call mute
- Enhanced function: audio optimization, redial, callhold, volume synchronization,multiple calls control• Enhanced DSS key Directory

• Local phonebook up to 1000 entries
• Black list
• XML/LDAP remote phonebook
• Smart dialing
• Phonebook search/import/export
• Call history: dialed/received/missed/forwarded

IP-PBX Features
• Busy Lamp Field (BLF)
• Bridged Line Apperance (BLA)
• Anonymous call, anonymous call rejection
• Hot-desking, voice mail
• Flexible seating
• Executive and Assistant
• Call park, call pickup
• Centralized call recording, call recording
• Visual voice mail

Display and Indicator
• 7" 800 x 480-pixel color touch screen with backlight 24 bit depth color
• LED for call and message waiting indication
• Wallpaper
• Intuitive user interface with icons and soft keys
• Multilingual user interface
• Caller ID with name, number and photo
• Screensaver
• Power saving

Feature keys
• 29 one-touch DSS keys
• 7 features keys: message, headset, hold, mute,transfer, redial, hands-free speakerphone
• 6 navigation keys
• Volume control keys
• Illuminated mute key
• Illuminated headset key
• Illuminated hands-free speakerphone key Interface
• Dual-port Gigabit Ethernet
• Power over Ethernet (IEEE 802.3af), class 3
• 2 x USB port (2.0 compliant)
• 1 x RJ9 (4P4C) handset port
• 1 x RJ9 (4P4C) headset port

Other Physical Features
• Color: Classic Grey
• Wall mountable (optional)
• External Yealink AC adapter (optional):AC 100~240V input and DC 5V/2A output
• USB output currency: 5V 1A
• Power consumption (PSU): 1.8-3.8W
• Power consumption (PoE): 2.3-4.7W
• Dimension (W*D*H*T): 266mm*226mm*185mm*54mm
• Operating humidity: 10~95%
• Operating temperature: -10~50°C (+14~122°F)

Management
• Configuration: browser/phone/auto-provision
• Auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy
• Auto-provision with PnP
• Zero-sp-touch, TR-069
• Phone lock for personal privacy protection
• Reset to factory, reboot
• Package tracing export, system log

Network and Security
• SIP v1 (RFC2543), v2 (RFC3261)
• Call server redundancy supported
• NAT traversal: STUN mode
• Proxy mode and peer-to-peer SIP link mode
• IP assignment: static/DHCP
• HTTP/HTTPS web server
• Time and date synchronization using SNTP
• UDP/TCP/DNS-SRV(RFC 3263)
• QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP SRTP for voice
• Transport Layer Security (TLS)
• HTTPS certificate manager
• AES encryption for configuration file
• Digest authentication
• OpenVPN, IEEE802.1X
• IPv6
• LLDP/CDP/DHCP VLAN
• ICE

Package Features
• Package content:
- Yealink SIP-T48U IP phone
- Handset with handset cord
- Ethernet Cable (2m CAT5E UTP Cable)
- Stand
- Quick Start Guide
- Power Adapter (Optional)
- Wall Mount Bracket (Optional)
• Qty/CTN: 5 PCS
• N.W/CTN: 7.9 kg
• G.W/CTN: 8.4 kg
• Giftbox size: 324mm*263mm*128mm
• Carton Meas: 660mm*338mm*273mm
