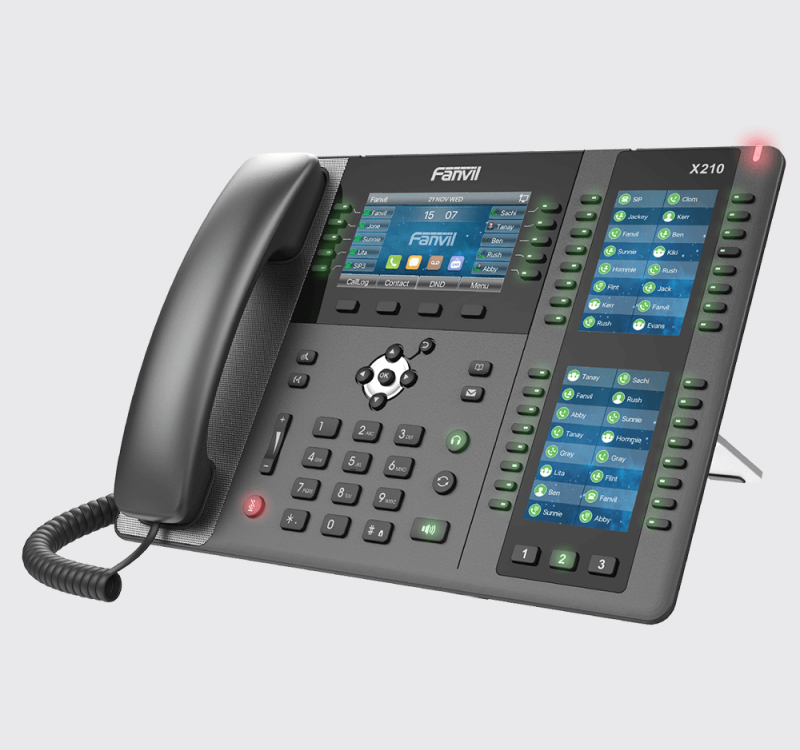

Features

• 20 SIP lines, 3-way conference, hotspot
• HD audio on speakerphone and handset
• 4.3” main color display, 2x3.5” side color displays for DSS keys
• Built-in Bluetooth
• Wi-Fi connectivity(Via Wi-Fi dongle)
• Up to 106 DSS keys(42 tri-colored physical keys)
• Video Codec H.264 support for receiving video calls
• Dual Gigabit ports, integrated PoE

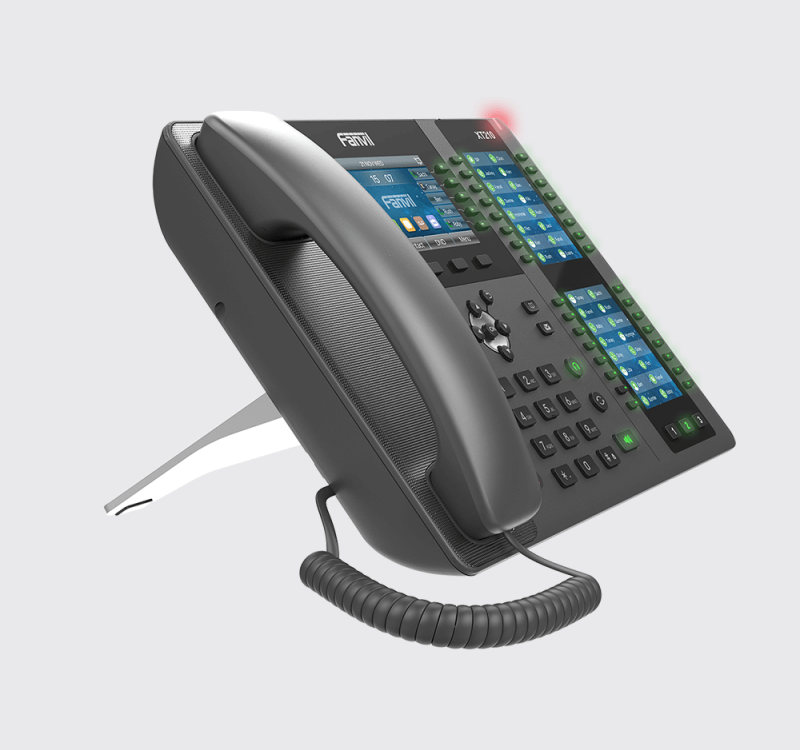

• Stand with 2 adjustable angles of 40 and 50 degrees

Phone Features
• Local Phonebook (2000 entries)
• Remote Phonebook (XML/LDAP, 2000 entries)
• Call logs (In/out/missed, 1000 entries)
• Blocked/Allowed List
• Screen saver
• Voice Message Waiting Indication (VMWI)
• Programmable DSS/Soft keys

Network Time Synchronization
• Built-in Bluetooth 4.2: Support Bluetooth headset
• Support Wi-Fi Dongle
• Support Plantronics wireless headset (Through Plantronics
APD-80 EHS Cable)
• Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)

Video
•Video codec: H.264
• Video call resolution: QCIF/CIF/VGA/1080P

Audio
• HD Voice Microphone/Speaker (Handset/Hands-free, 0~ 7KHz
Frequency Response)
•HAC handset
• Wideband ADC/DAC 16KHz Sampling
• Narrowband Codec: G.711a/u, G.723.1, G.726-32K, G.729A/B,ILBC
• Wideband Codec: G.722, Opus
• Full-duplex Acoustic Echo Canceller (AEC) Voice Activity Detection (VAD)/Comfort Noise Generation (CNG) /Background Noise Estimation (BNE) / Noise Reduction (NR)/ Automatic Gain Control (AGC) Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer up to 300ms
• DTMF: In-band, Out-of-Band - DTMF-Relay(RFC2833)/SIP INFO

Networking
• Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass
• IP Mode:IPv4/IPv6/IPv4&IPv6
• IP Configuration: Static/DHCP / PPPOE
• Network Access Control: 802.1x
• VPN: L2TP/ OpenVPN
• VLAN
• LLDP
• RICE_XR|RFC3611)VQ-9[CFXR|RFC6025)

Protocols
• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• LLDP
• PPPoE
• 802.1x
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069
• Support Recording (Through Flash Drive or Server Recording) Action URL / Active URI
• uaCSTA

Call Features
• Call out / Answer / Reject
• Mute/ Unmute (Microphone)
• Call Hold / Resume
• Call Waiting
• Intercom
• Caller ID Display
• Speed Dial
• Anonymous Call (Hide Caller ID)
• Call Forwarding (Always/Busy/No Answer)
• Call Transfer (Attended/Unattended)
• Call Parking/Pick-up (Depending on server)
• Redial
• Do-Not-Disturb
• Auto-Answering
• Voice Message (On server)
• 6-way Conference
• Hot Line
• Hot desking
• AES128 & AES256

Deployment & Maintenance

• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP
• PNP/TR-069
• Web Management Portal
• Web-based Packet Dump
• Configuration Export/Import
• Phonebook Import/Export
• Firmware Upgrade
• Syslog

Physical Specifications
• Main LCD x1: 4.3 inch (480x272) color-screen LCD
• DSS Key-mapping LCD x2: 3.5 Inch (320x480) color-screen LCD Keypad: 77 keys, including
• 45oft-keys
• 6 Function keys (Hold, Call forward, Phonebook, MWI,
Headset, Redial) 4 Navigation keys :
- 10K key
- 1 Return key
- 12 Standard Phone Digits keys 3 Volume Control keys, Up/Down/Mute(Microphone)
- 1 Hands-free key
• 42 DSS Keys with tri-color LED
• 3 Page-Switch (PS) key HD Handset (RJ9) x1
• Standard RJ9 Handset Wire x1
• 1.5M CAT5 Ethernet Cable x1
• Back Rack x1
• RJ9 Port x2: Handset x1, Headset x1
• RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
• USB2.0 Port x1: Standard A, Connect with Wi-Fi USB dongle or Flash Driver
• DC Power Input: 5V/2A
• Power Consumption (PoE): 2.6"" 9W
• Power Consumption (Adapter): 2,4~8W
• Working Temperature: 0~45C
• Working Humidity: 10~95%
• Installation: Desktop Stand
• Color: Dark gray Device Dimensions
➤ Desktop Stand (Angles 1): 309 x 214 x 187mm > Desktop Stand (Angles 2): 309 x 226 x 167mm
• Gift Box Dimensions: 323 x 301 x 71mm
• Outer CTN Dimensions: 624 x 383 x 348mm (10 PCS

Specifications

Physical
• Color: Black
• LCD x1:7 inch (1024x600) color touch screen
• Keypad: 26 keys, including
- 5 Function keys (Hold, MWI, Mute, Headset, Redial)
- 4 Navigation keys
- 1 OK key
- 1 Return key
- 12 Standard Phone Digits keys
- 2 Volume Control keys, Up/Down
- 1 Hands-free key
• HD Handset (RJ9) x1
• Standard RJ9 Handset Wire x1
• 1.5M CAT5 Ethernet Cable x1
• Back Rack x1
• RJ9 Port x2: Handset x1, Headset x1
• RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
• USB2.0 Port x1: Standard A, Connect with Flash Driver
• Safety keyhole x1
• Power: 5V/2A or PoE
• Power Consumption (PoE): 1.596~11.86W
• Power Consumption (Adapter): 0.907~9.38W
• Working Temperature: 0~45℃
• Working Humidity: 10~95%
• Installation: Desktop Stand
• Device Dimensions
• Desktop Stand (Angles 1): 268x185x189mm
• Desktop Stand (Angles 2): 268x201x168mm
• Gift Box Dimensions: 304x297x66mm
• Outer CTN Dimensions: 616x358x329mm(10 PCS)
