Features

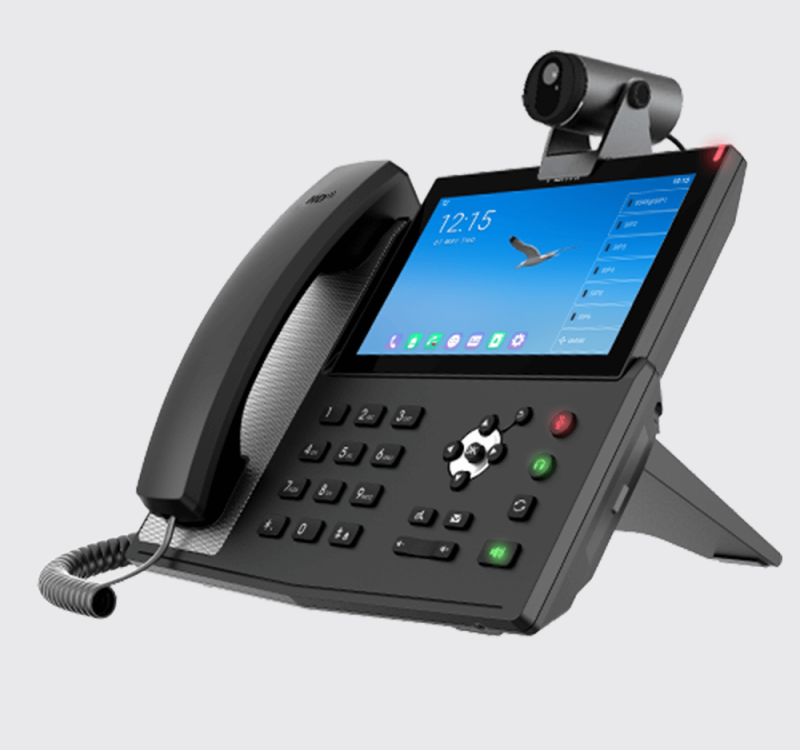

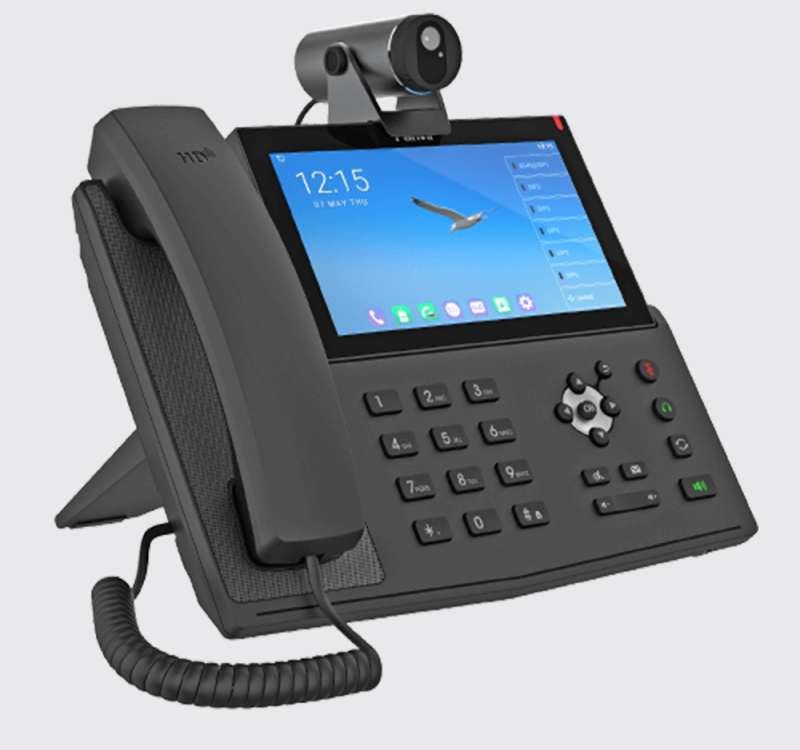

X7A Android Touch Screen IP Phone
+

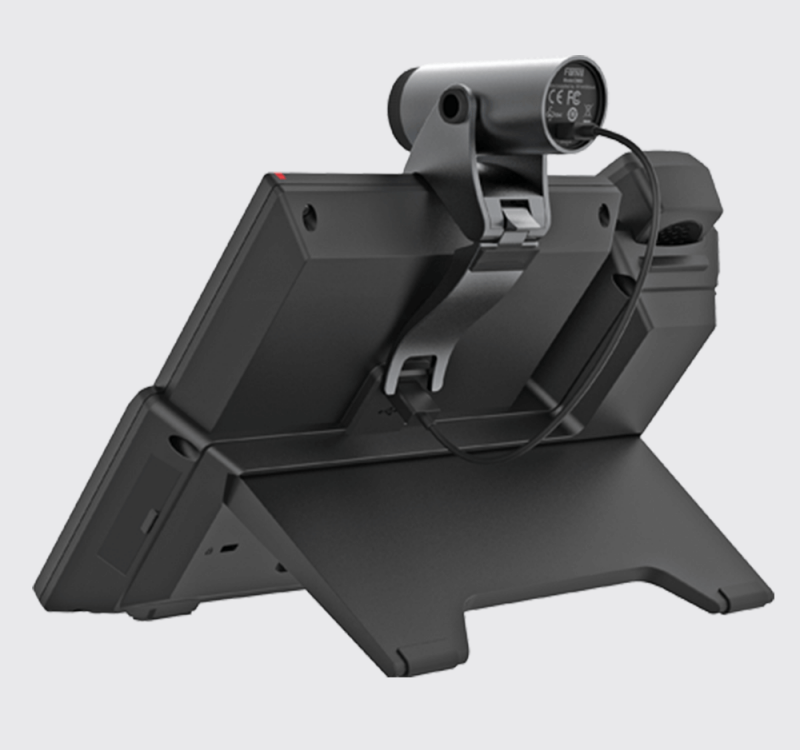

USB Camera for X7A
X7A :
• 20 SIP lines, hotspot
• Support an external Fanvil USB camera (optional)
• 112 one-touch DSS keys on 7” capacity color touch screen
• HD audio with Harman speaker
• Built-in Bluetooth 4.2 and 2.4G/5G Wi-Fi
• Support video codec H.264
• Dual Gigabit ports, integrated PoE
• Stand with 2 adjustable angles of 40 and 50 degrees
CM60 :
• Plug and Play / 1080P@30fps
• Adjustable Angle and Flexible Placement
• HD 2 Mega Pixels Camera
• Privacy Shutter Switch
• Suitable for Fanvil High-end Phones

Specifications

Operation System
•  Android 9.0 OS with higher security and better compatibility
•  Built-in Applications:Files, Calendar, Gallery, Browser, Email, Calculator, Notepad,Sound Recorder, Clock, Video, Music
•  Support 3rd Party Applications
•  Secondary Development of API

Phone Features
•  Local Phonebook (2000 entries)
•  Remote Phonebook (XML/LDAP, 2000 entries)
•  Intelligent Search for Contacts and Call Log
•  Call logs (In/out/missed, 1000 entries)
•  Blocked list/Allowed list
•  Screen saver
•  Voice Message Waiting Indication (VMWI)
•  Programmable DSS/Soft keys
•  Network Time Synchronization
•  Built-in Bluetooth 4.2: Support Bluetooth headset/ Bluetooth of Mobile Device
•  Built-in Wi-Fi
✓ 2.4GHz, 802.11 b/g/n
✓ 5GHz, 802.11 a/n/ac
•  Miracast
•  Support Recording
•  Action URL / Active URI
•  UaCSTA
•  Audio/Video Recording
•  SIP Hotspot
•  Group Broadcasting
•  Action Plan
•  Group listening
•  Support Poly wireless headset (Through Plantronics APD-80 EHS Cable)
•  Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable）

Call Features
•  Call out / Answer / Reject
•  Mute / Unmute (Microphone)
•  Call Hold / Resume
•  Call Waiting
•  Intercom
•  Caller ID Display
•  Speed Dial
•  Anonymous Call (Hide Caller ID)
•  Call Forwarding (Always/Busy/No Answer)
•  Call Transfer (Attended/Unattended)
•  Call Parking/Pick-up (Depending on server)
•  Redial
•  Do-Not-Disturb
•  Auto-Answering
•  Voice Message (On server)
•  Hot Line
•  Hotdesking
•  BLF
•  3-way video conference, 10-way voice conference Video
•  Video decoding: H.264
•  Video call resolution: QVGA/CIF/VGA/4CIF/720P/1080P
•  Image format: JPEG/PNG/BMP
•  Video format: MP4
•  Bandwidth selection: 64kbps~4Mbps
•  Frame rate selection: 5~30fps
•  Video from remote site can be displayed in full screen
•  Optional Fanvil CM60 USB Camera
➢ 2 Mega Pixel
➢ Plug and Play
➢ Flexible Placement and Angle

Adjustment
•  Video Preview Audio
•  HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHz Frequency Response)
•  HAC handset
•  Wideband ADC/DAC 16KHz Sampling
•  Narrowband Codec: G.711a/u, G.729AB, iLBC
•  Wideband Codec: G.722, Opus
•  Full-duplex Acoustic Echo Canceller (AEC)
•  Noise Reduction (NR)
•  Packet Loss Concealment (PLC)
•  Dynamic Adaptive Jitter Buffer
•  DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO

Network
•  Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass
•  IP Mode:IPv4
•  IP Configuration: Static / DHCP
•  Network Access Control: 802.1x
•  VPN: OpenVPN (Requires third-party app support)
•  VLAN
•  LLDP
•  CDP
•  QoS
•  WI-FI Security Mode：WPA /WPA2-PSK/802.X EAP

Protocols
•  SIP2.0 over UDP/TCP/TLS
•  RTP/RTCP/SRTP
•  STUN
•  DHCP
•  CDP
•  LLDP
•  PPPoE
•  802.1x
•  OpenVPN (Requires third-party app support)
•  SNTP
•  FTP/TFTP
•  HTTP/HTTPS
•  TR-069

Deployment & Management
•  Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
•  Web Management Portal
•  Supports the third party communication APP
•  Supports Web, Telnet
•  Supports encrypted configuration files download with AES
•  Supports Web upgrade
•  Supports factory reset data
Physical
•  Color: Black
•  LCD x1:7 inch (1024x600) color touch screen
•  Keypad: 26 keys, including
➢ 5 Function keys (Hold, MWI, Mute, Headset, Redial)
➢ 4 Navigation keys
➢ 1 OK key
➢ 1 Return key
➢ 12 Standard Phone Digits keys
➢ 2 Volume Control keys, Up/Down
➢ 1 Hands-free key
•  HD Handset (RJ9) x1
•  Standard RJ9 Handset Wire x1
•  1.5M CAT5 Ethernet Cable x1
•  Back Rack x1
•  RJ9 Port x2: Handset x1, Headset x1
•  RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
•  USB2.0 Port x1: Standard A, Connect with Flash Driver
•  Safety keyhole x1
•  Power: 5V/2A or PoE
•  Power Consumption (PoE): 1.596~11.86W
•  Power Consumption (Adapter): 0.907~9.38W
•  Working Temperature: 0~45℃
•  Working Humidity: 10~95%
•  Qty/CTN：10pcs
•  N.W/CTN: 21.1kg
•  G.W/CTN: 22.22kg
•  Installation: Desktop Stand
•  Device Dimensions
➢ Desktop Stand (Angles 1): 268x185x189mm
➢ Desktop Stand (Angles 2): 268x201x168mm
•  Gift Box Dimensions: 304x297x66mm
•  Outer CTN Dimensions: 616x358x329mm (10 PCS)
