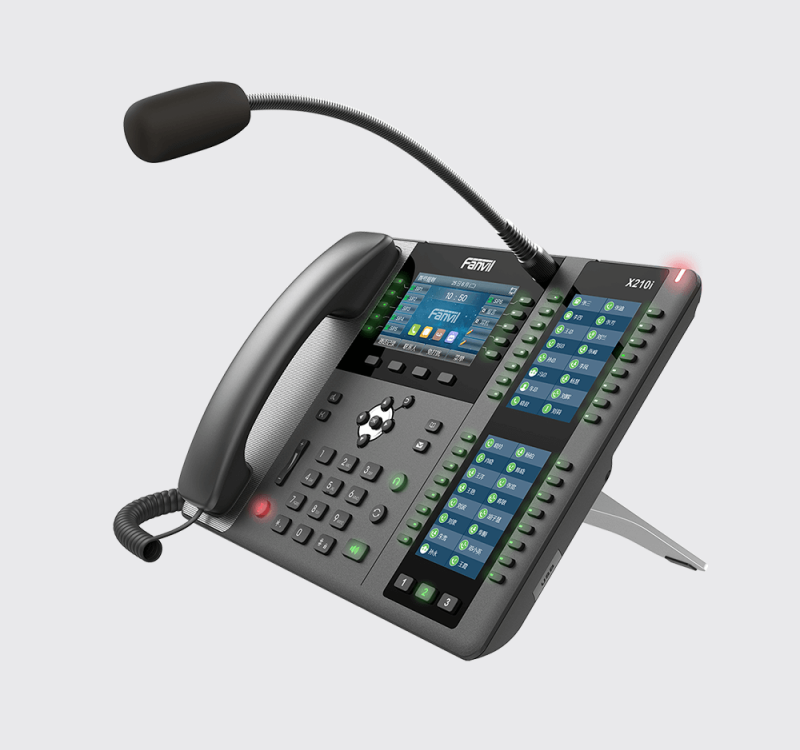

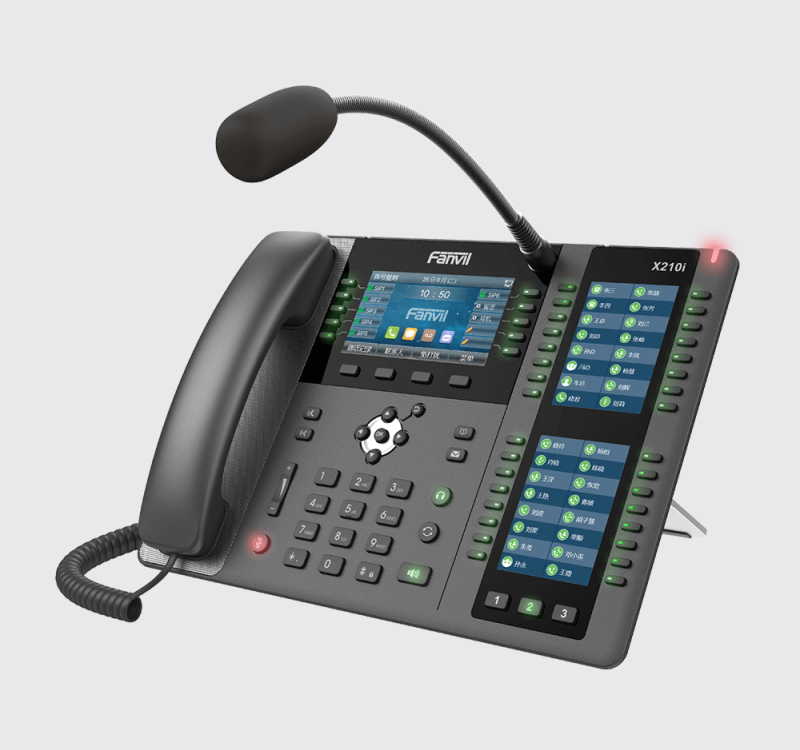

Features

• 20 SIP lines, 3-way conference, hotspot
• HD audio on speakerphone and handset
• Movable type Directional External Gooseneck Microphone
• 4.3” main color display, 2x3.5” side color displays for DSS keys
• Built-in Bluetooth
• Wi-Fi connectivity(Via Wi-Fi dongle)
• Up to 106 DSS keys(42 tri-colored physical keys)
• Video Codec H.264 support for receiving video calls
• Dual Gigabit ports, integrated PoE
• Stand with 2 adjustable angles of 40 and 50 degrees

Phone Features
• Local Phonebook (2000 entries)
• Remote Phonebook (XML/LDAP, 2000 entries)
• Call logs (In/out/missed, 1000 entries)
• Blocked /Allowed List
• Screen saver
• Voice Message Waiting Indication (VMWI)
• Programmable DSS/Soft keys
• Network Time Synchronization
• Built-in Bluetooth 4.2: Support Bluetooth headset
• Support Wi-Fi Dongle
• Support Poly wireless headset
• Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
• Support Recording (Through Flash Drive or Server Recording )
• Action URL / Active URI

Video
• Video codec: H.264
• Video call resolution: QCIF / QVGA / CIF / VGA / 4CIF / 720P / 1080P

Audio
• HD Voice Microphone/Speaker (Handset/Hands free, 0 ~ 7KHz Frequency Response)
• HAC handset
• Wideband ADC/DAC 16KHz Sampling
• Narrowband Codec: G.711a/u, G.723.1, G.726 32K, G.729A/B, iLBC
• Wideband Codec: G.722, Opus
• Full duplex Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) / Automatic Gain Control (AGC)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer up to 300ms
• DTMF: In band, Out of Band DTMF Relay(RFC2833) / SIP INFO

Networking
• Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass
• IP Mode:IPv4/IPv6/IPv4&IPv6
• IP Configuration: Static / DHCP / PPPoE
• Network Access Control: 802.1x
• VPN: L2TP / OpenVPN
• VLAN
• LLDP
• QoS
• RTCP XR(RFC3611),VQ RTCPXR(RFC6035)

Protocols
• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• LLDP
• PPPoE
• 802.1x
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR 069
• AES128 & AES256
• uaCSTA

Call Features
• Call out / Answer / Reject
• Mute / Unmute (Microphone)
• Call Hold / Resume
• Call Waiting
• Intercom
• Caller ID Display
• Speed Dial
• Anonymous Call (Hide Caller ID)
• Call Forwarding (Always/Busy/No Answer)
• Call Transfer (Attended/Unattended)
• Call Parking/Pick-up (Depending on server)
• Redial
• Do-Not-Disturb
• Auto-Answering
• Voice Message (On server)
• 6-way Audio Conference
• Hot Line
• Hot desking

Deployment & Maintenance
• Auto Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR 069
• Web Management Portal
• Web based Packet Dump
• Configuration Export / Import
• Phonebook Import/Export
• Firmware Upgrade
• Syslog

Physical Specifications
• Main LCD x1: 4.3 inch (480x272) color screen LCD
• DSS Key mapping LCD x2: 3.5 inch (320x480) color screen LCD
• Keypad: 77 keys, including
➢ 4 Soft keys
➢ 6 Function keys (Hold, Call forward, Phonebook, MWI, Headset, Redial)
➢ 4 Navigation keys
➢ 1 OK key
➢ 1 Return key
➢ 12 Standard Phone Digits keys
➢ 3 Volume Control keys, Up/Down/Mute(Microphone)
➢ 1 Hands free key
➢ 42 DSS Keys with tri color LED
➢ 3 Page Switch (PS) key
• HD Handset (RJ9) x1
• Standard RJ9 Handset Wire x1
• 1.5M CAT5 Ethernet Cable x1
• Gooseneck Microphone x1
➢ Directional microphone
➢ Frequency response: 20Hz~20KHz
➢ SNR: 60 dB.1kHz at 1 Pa
• Back Rack x1
• Gooseneck MIC Port x1: Gooseneck Microphone x1
• RJ9 Port x2: Handset x1, Headset x1
• RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
• USB2.0 Port x1: Standard A, Connect with Wi Fi USB dongle or Flash Driver
• DC Power Input: 5V/2A
• Power Consumption (PoE):1.88~7.3W
• Power Consumption (Adapter): 1.36~5.84W
• Working Temperature: 0~45℃
• Working Humidity: 10~95%
• Qty/CTN: 10pcs
• N.W/CTN: 18.77kg
• G.W/CTN: 19.9kg
• Installation: Desktop Stand
• Color: Dark gray
• Device Dimensions
➢ Desktop Stand (Angles 1): 309 x 214 x 187mm
➢ Desktop Stand (Angles 2): 309 x 226 x 167mm
• Gift Box Dimensions: 323 x 301 x 71mm
• Outer CTN Dimensions: 624 x 383 x 348mm (10 PCS)

Specifications

Physical
•Main LCD x1: 4.3 inch (480x272) color-screen LCD
•DSS Key-mapping LCD x2: 3.5 inch (320x480) color-screen LCD
•Keypad: 77 keys, including
•4 Soft-keys
•6 Function keys (Hold, Call forward, Phonebook, MWI, Headset, Redial)
•4 Navigation keys
- 1 OK key
- 1 Return key
- 12 Standard Phone Digits keys
- 3 Volume Control keys, •Up/Down/Mute(Microphone)
•1 Hands-free key
•42 DSS Keys with tri-color LED
•3 Page-Switch (PS) key
•HD Handset (RJ9) x1
•Standard RJ9 Handset Wire x1
•1.5M CAT5 Ethernet Cable x1
•Gooseneck Microphone x1
•Directional microphone
•Frequency response: 20Hz~20KHz
•SNR: ≥60 dB.1kHz at 1 Pa
•Back Rack x1
•Gooseneck MIC Port x1: Gooseneck •Microphone x1
•RJ9 Port x2: Handset x1, Headset x1
•RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
•USB2.0 Port x1: Standard A, Connect with Wi-Fi USB dongle or
•Flash Driver
•DC Power Input: 5V/2A
