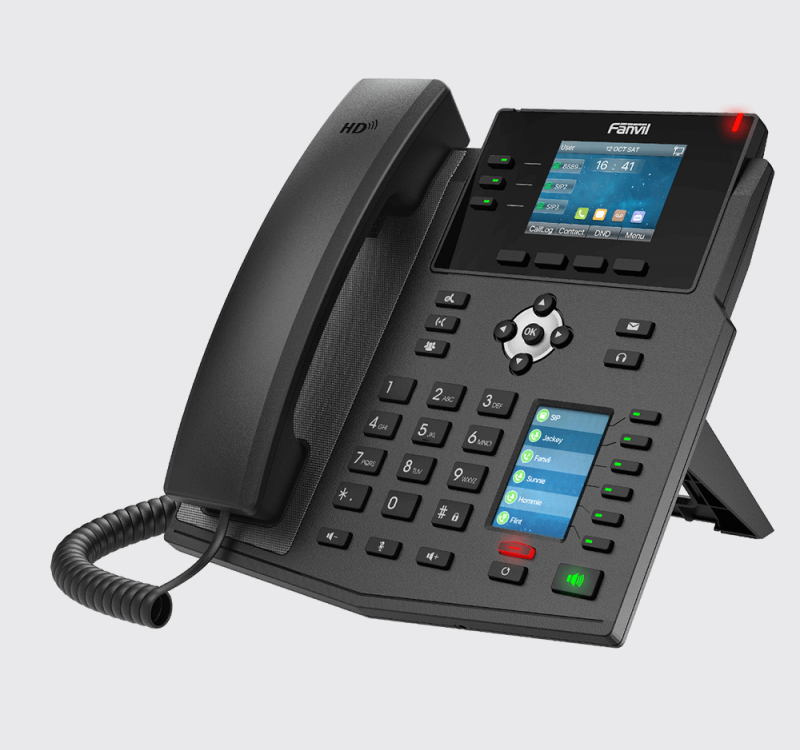

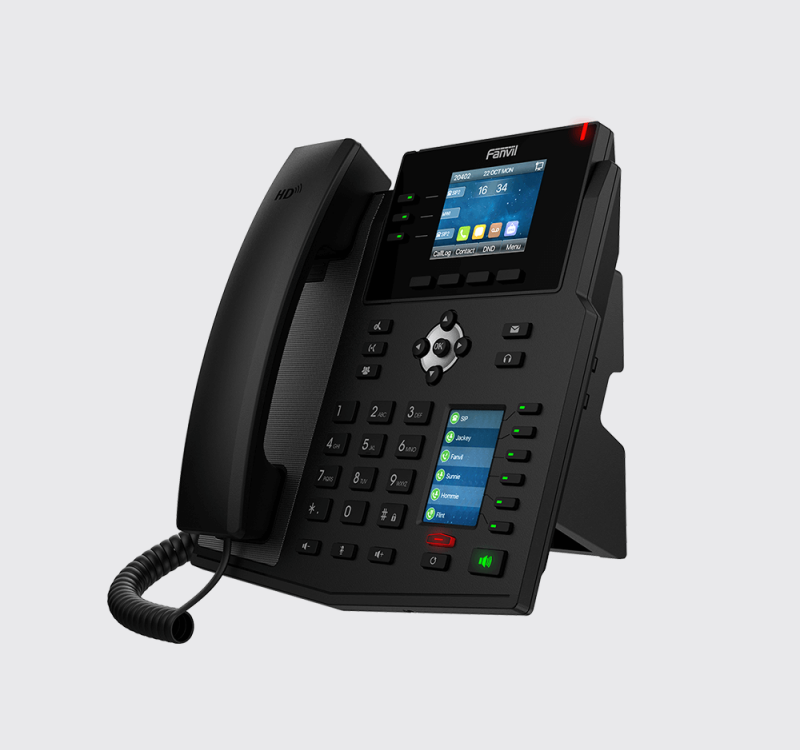

Features

•12 SIP lines, 3-way conference, SIP hotspot
•3 Line keys on the main display
•HD audio on speakerphone and handset
•1x2.8” main color display, 1x2.4” side color displays for DSS keys
•Support Wi-Fi connectivity (Via Wi-Fi dongle)
•Up to 30 DSS keys(6 two-colored physical keys)
•Dual Gigabit ports, integrated PoE
•Support LDAP, XML phonebook
•Stand with 2 adjustable angles of 45 and 50 degrees
•Network : 10/100/1000Mbps

Specifications

Phone Functions
• Local phonebook (1000 entries)
• Remote phonebook (XML/LDAP, 1000 entries)
• Call logs (in/out/missed, 1000 entries)
• Blocked list
• Allowed list
• Screen saver
• Voice message waiting indication (VMWI)
• Programmable DSS/soft keys
• Network time synchronization
• Support Bluetooth headset (Via BT dongle BT20)
• Support Wi-Fi Dongle (Via WF20)
• Support Poly wireless headset (through Poly APD-80 EHS cable)
• Support Jabra wireless headset (through Fanvil EHS20 EHS cable)
• Support recording (through flash drive or server)
• Action URL / Active URI
• uaCSTA

Call Functions
• Call out / answer / reject
• Mute / unmute (microphone)
• Call hold / resume
• Call waiting
• Intercom
• Caller ID display
• Speed dial
• Anonymous call (hide caller ID)
• Call forward (Always/Busy/No Answer)
• Call transfer (Attended/Unattended)
• Call parking/pick-up (depending on server)
• Redial
• Do-Not-Disturb
• Auto-answering
• Voice message (with server)
• 6-way audio conference
• Hot line
• Hot desking

Audio
• HD voice microphone/speaker (handset/hands-free, 0 ~ 7KHzfrequency response)
• HAC handset
• Wideband ADC/DAC 16KHz sampling
• Narrowband codec: G.711a/u, G.729A/B, G.723.1, G.726, iLBC
• Wideband codec: G.722, Opus
• Full-duplex Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE) / Noise Reduction (NR) /Automatic Gain Control (AGC)
• Packet Loss Concealment (PLC)
• Dynamic adaptive jitter buffer
• DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO)
• VQM voice quality monitoring

Network
• Physical: 10/100/1000Mbps ethernet, dual bridged port for PC bypass
• IP Mode:IPv4/IPv6/IPv4&IPv6
• IP Configuration: Static IP / DHCP / PPPoE
• Network Access Control: 802.1x
• VPN: L2TP / OpenVPN
• VLAN
• LLDP
• CDP
• QoS
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

Protocols
• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• LLDP
• CDP
• PPPoE
• 802.1x
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069
• AES128 & AES256

Deployment & Management
• Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
• Web management portal
• Web-based packet dump
• Configuration export / import
• Phonebook import/export
• Firmware upgrade
• Syslog

Physical
• Main LCD: 2.8-inch (320x240) color screen
• DSS key-mapping LCD: 2.4-inch (240x320) color screen
• Keypad: 41 keys, including
➢ 3 Line keys (with LED indicator light)
➢ 4 Soft-keys
➢ 6 Function keys (Hold, Call forward, Conference, MWI,Headset, Redial)
➢ 4 Navigation keys
➢ 1 OK key
➢ 12 Standard phone digits keys
➢ 3 Volume control keys (Up/Down/Mute (Microphone))
➢ 6 DSS keys (with LED indicator light)
➢ 1 Page-switch (PS) key (with LED indicator light)
➢ 1 Hands-free key (with LED indicator light)
• HD handset (RJ9) x1
• Standard RJ9 handset cord x1
• 1.5M CAT.5E ethernet cable x1
• Back rack x1
• Status indicator light x1 (Red)
• RJ9 port x2: handset x1, headset x1
• RJ45 port x2: network x1, PC x1 (bridged to network)
• USB2.0 port x1: Standard A, connect with USB BT dongle or USBWi-Fi dongle or flash driver
• DC port x1: Φ5.5x2.1x10mm
• Safety keyhole x1
• DC power input: DC5V / 2A
• Power Consumption: Idle 0.87~1.27W, Peak 4.72~6.8W
• Working temperature: 0~45℃
• Working humidity: 10~95%
• Installation:
➢ Desktop stand
➢ Wall-mounted (need an additional wall hanging parts)
• Color: black
• Device dimensions:
➢ Desktop stand (angles 1: 45 degree): 214x188.6x181.1 mm
➢ Desktop stand (angles 2: 50 degree): 214x180.5x190.1 mm
➢ Wall-mounted: 214x119.4x219.1 mm
• Gift box dimensions: 315x228x84 mm
• Outer CTN dimensions: 476x440x335 mm (10 PCS)
• N.W/CTN: 11.76kg
• G.W/CTN: 12.66kg
