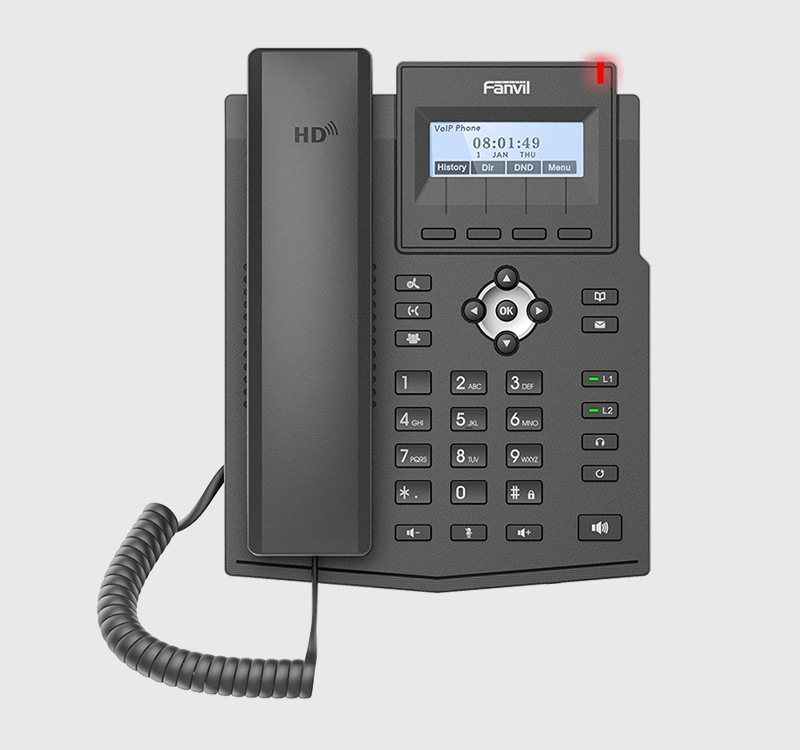

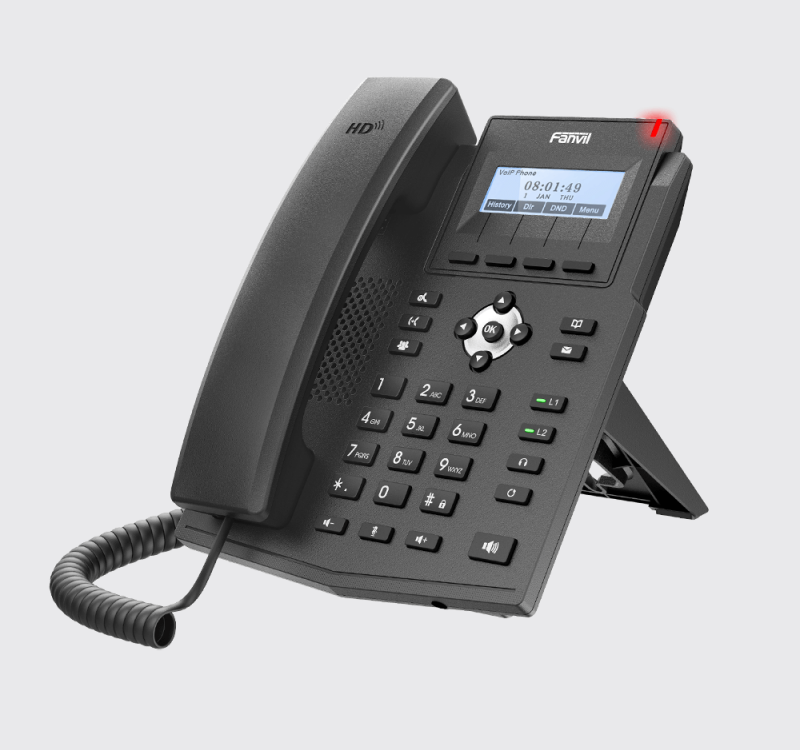

Fanvil X1SG

ราคา : 1,740 บาท

Features

2 SIP lines, 3-way conference, SIP hotspot
-1000 local phonebook, caller ID, call hold, call transfer
-128x48 Dot-matrix display
-HD audio on speakerphone and handset Opus voice: can handle a variety of audio applications, including IP voice,
Multiparty conference etc.
-Support EHS wireless headset
-Dual Gigabit ports, integrated PoE

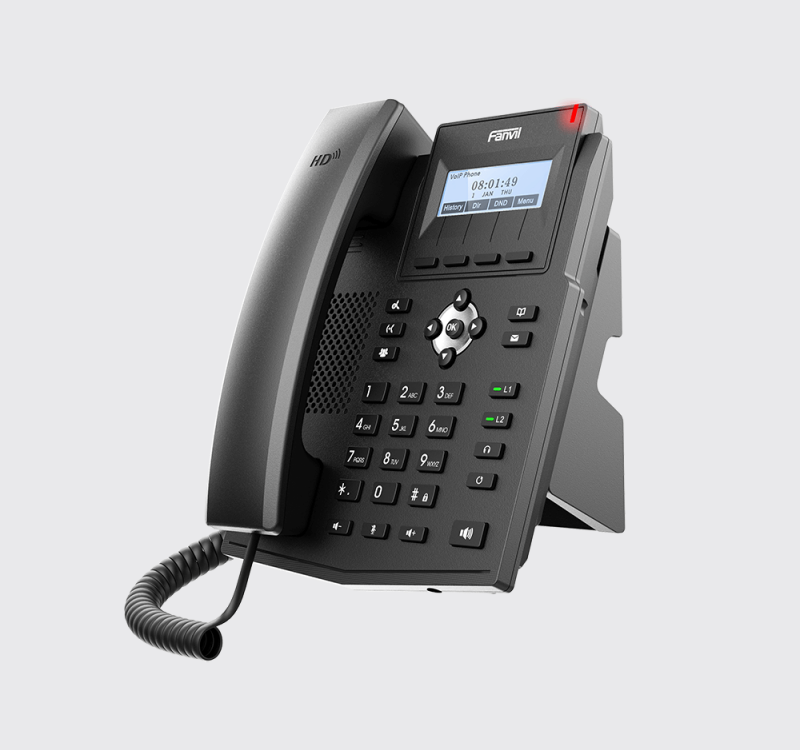

-Stand with 2 adjustable angles of 45 and 50 degrees
-Compatible with major platforms: Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya etc

Specifications

Phone Functions
• Local Phonebook (1000 entries)
• Remote Phonebook (XML/LDAP, 1000 entries)
• Call logs (In/Out/Missed, 600 entries)
• Blocked List/ Allowed List
• Voice Message Waiting Indication (VMWI)
• Programmable DSS/Soft keys
• Network Time Synchronization
• Support Poly wireless headset (Through Poly APD-80 EHS Cable)
• Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
• Support Recording (Through Server)
• Action URL / Active URI
• uaCSTA

Call Functions
• Call Out / Answer / Reject
• Mute / Unmute (Microphone)
• Call Hold / Resume
• Call Waiting

 Intercom
• Caller ID Display
• Speed Dial
• Anonymous Call (Hide Caller ID)
• Call Forward (Always/Busy/No Answer)
• Call Transfer (Attended/Unattended)
• Call Parking/Pick-up (Depending on server)
• Redial
• Do-Not-Disturb
• Auto-Answering
• Voice Message (With server)
• 3-way Audio Conference
• Hot Line
• Hot Desking

Audio
• HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHzFrequency Response)
• HAC Handset
• Wideband ADC/DAC 16KHz Sampling
• Narrowband Codec: G.711a/u, G.726-32K, G.729A, iLBC
• Wideband Codec: G.722, Opus
• Full-duplex Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)
/ Background Noise Estimation (BNE) / Noise Reduction (NR)
• Packet Loss Concealment (PLC)
• Dynamic Adaptive Jitter Buffer
• DTMF: In-Band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

• Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PCbypass
• IP Mode: IPv4/IPv6/IPv4&IPv6
• IP Configuration: Static IP / DHCP / PPPoE
• Network Access Control: 802.1x
• VPN: L2TP / OpenVPN
• VLAN
• LLDP
• QoS
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

Protocols
• SIP2.0 over UDP/TCP/TLS
• RTP/RTCP/SRTP
• STUN
• DHCP
• IPv6
• LLDP
• PPPoE
• 802.1x
• L2TP
• OpenVPN
• SNTP
• FTP/TFTP
• HTTP/HTTPS
• TR-069

Deployment & Management
• Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP
PNP/TR-069
• Web Management Portal
• Web-based Packet Dump
• Configuration Export / Import
• Phonebook Import/Export
• Firmware Upgrade
• Syslog

Physical
• Main LCD x1: 128x48 Dot-matrix screen with backlight
• Keypad: 34 keys, including
➢ 4 Soft-keys
➢ 7 Function keys (Hold/Transfer/Conference/Phonebook/MWI/Headset/Redial)
➢ 2 Line keys (With LED Indicator Light)
➢ 4 Navigation keys
➢ 1 OK key
➢ 12 Standard Phone Digits keys
➢ 3 Volume Control keys (Up/Down/Mute (Microphone))
➢ 1 Hands-free key
• HD Handset (RJ9) x1
• Standard RJ9 Handset Wire x1
• 1.5M CAT5 Ethernet Cable x1
• Back Rack x1
• Status Indicator Light x1 (Red)
• RJ9 Port x2: Handset x1, Headset x1
• RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
• Safety Keyhole x1
• DC Power Input: 5V/0.6A
• Power Consumption: Idle 0.9~1.65W,Peak 1.8~2.95W
• Working Temperature: 0~45℃
• Working Humidity: 10~95%
• Qty/CTN: 10PCS
• N.W/CTN: 9.49kg
• G.W/CTN: 10.21kg
• Installation:
➢ Desktop Stand
➢ Wall-mounted (need an additional wall hanging parts)
• Color: Black
• Device Dimensions:
➢ Desktop Stand (Angles 1): 169x186.3x174.5 mm
➢ Desktop Stand (Angles 2): 169x177.6x183.7 mm
➢ Wall-mounted: 169x115.6x212.5 mm
• Gift Box Dimensions: 274x215x68 mm
• Outer CTN Dimensions: 450x360x294 mm (10 PCS)
