Features

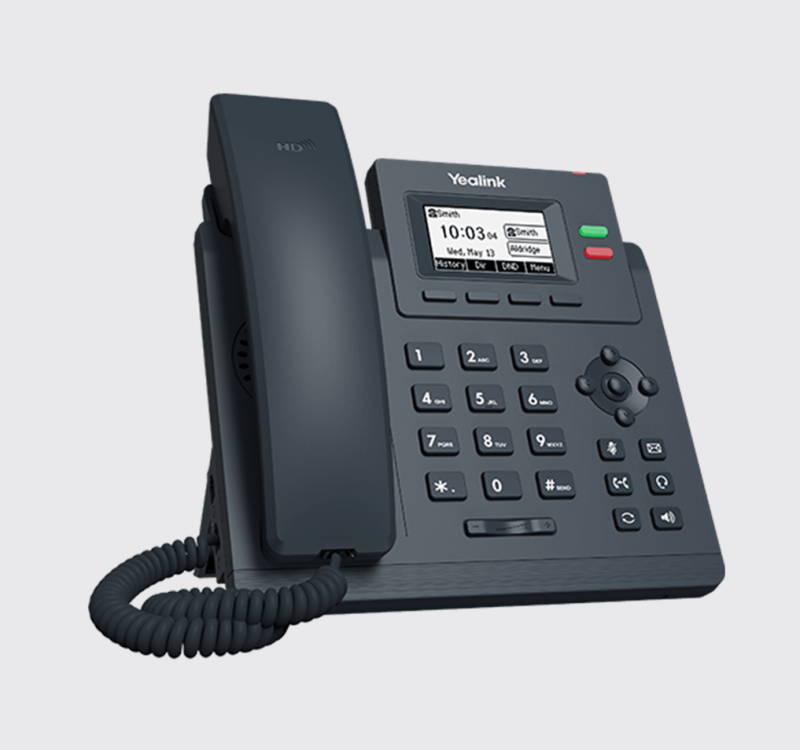

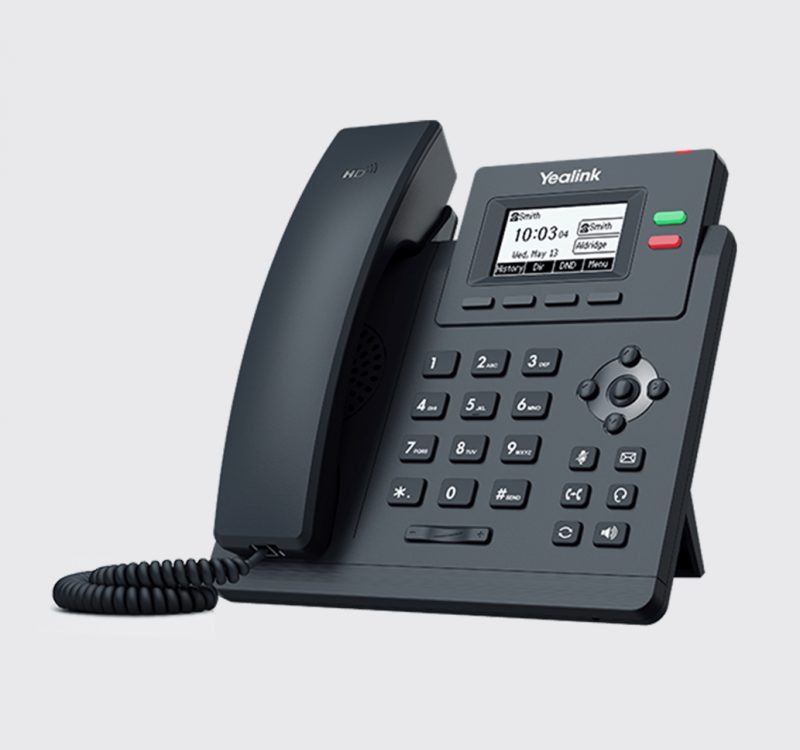

Yealink Classical IP Phone, 2.3" B/W screen with PSU
• Yealink HD Voice
• 2.3” 132x64-pixel graphical LCD with backlight
• Two-port 10/100M Ethernet Switch
• Opus codec support
• Up to 2 SIP accounts
• Local 5-way conferencing
• Support EHS Wireless Headset
• Unified Firmware
• Support YDMP/YMCS
• Stand with 2 adjustable angles
• Wall mountable

Specifications

Audio Features
• HD voice: HD handset, HD speaker
• Smart Noise Filtering
• Wideband codec: Opus, G.722
• Narrowband codec: G.711(A/μ), G.723.1, G.729,G.729A, G.726, iLBC
• DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
• Full-duplex hands-free speakerphone with AEC
• VAD, CNG, AEC, PLC, AJB, AGC

Phone Features
• 2 VoIP accounts
• Call hold, mute, DND
• One-touch speed dial, hotline
• Call forward, call waiting, call transfer
• Group listening, SMS, emergency call
• Redial, call return, auto answer
• Local 5-way conferencing
• Direct IP call without SIP proxy
• Ring tone selection/import/delete
• Set date time manually or automatically
• Dial plan
• XML Browser, action URL/URI
• Integrated screenshots
• RTCP-XR, VQ-RTCPXR
• Enhanced DSS Key

Directory
• Loal phonebook up to 1000 entries
• Black list
• XML/LDAP remote phonebook
• Smart dialing
• Phonebook search/import/export
• Call history: dialed/received/missed/forwarded IP-PBX Features
• Busy Lamp Field (BLF), Bridged Line Apperance (BLA)
• Anonymous call, anonymous call rejection
• Hot-desking, voice mail
• Flexible seating
• Call park, call pickup
• Executive and Assistant
• Centralized call recording
• Visual voice mail
• Call recording

Display and Indicator
• 2.3” 132x64-pixel graphical LCD with backlight
• LED for call and message waiting indication
• Dual-color (red or green) illuminated LEDs for

line status information
• Intuitive user interface with icons and soft keys
• Multilingual user interface
• Caller ID with name and number
• Power saving

Feature keys
• 2 line keys with LED
• 6 features keys: transfer, message, headset,redial, mute, hands-free speakerphone
• 5 navigation keys
• Volume control keys

Interface
• 2 x RJ45 10/100M Ethernet ports
• 1 x RJ9 (4P4C) handset port
• 1 x RJ9 (4P4C) headset port

Other Physical Features
• Color: Classic Grey
• Wall mountable
• External Yealink AC adapter

AC 100~240V input and DC 5V/600mA output
• Power consumption (PSU): 2-3W
• Dimension (W*D*H*T):188mm*189mm*162mm*50mm
• Operating humidity: 10~95%
• Operating temperature: -10~50°C (+14~122°F)

Management
• Configuration: browser/phone/auto-provision
• Auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy
• Auto-provision with PnP
• Zero-sp-touch, TR-069
• Phone lock for personal privacy protection
• Reset to factory, reboot
• Package tracing export, system log

Network and Security
• SIP v1 (RFC2543), v2 (RFC3261)
• Call server redundancy supported
• NAT traversal: STUN mode
• Proxy mode and peer-to-peer SIP link mode
• IP assignment: static/DHCP
• HTTP/HTTPS web server
• Time and date synchronization using SNTP
• UDP/TCP/DNS-SRV (RFC 3263)
• QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
• SRTP for voice
• Transport Layer Security (TLS)
• HTTPS certificate manager
• AES encryption for configuration file
• Digest authentication
• OpenVPN, IEEE802.1X
• IPv6
• LLDP/CDP/DHCP VLAN
• ICE

Package Features
• Package content:
- Yealink SIP-T31 IP phone
- Handset with handset cord
- Ethernet Cable (1.5m CAT5E UTP Cable)
- Stand
- Quick Start Guide
- Power Adapter (Optional)
• Qty/CTN: 10 PCS
• N.W/CTN: 9.8 kg
• G.W/CTN: 10.81 kg
• Giftbox size: 213 mm*210 mm*103 mm
• Carton Meas: 535 mm*443 mm*227 mm
